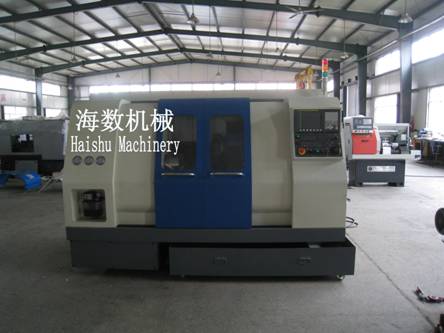

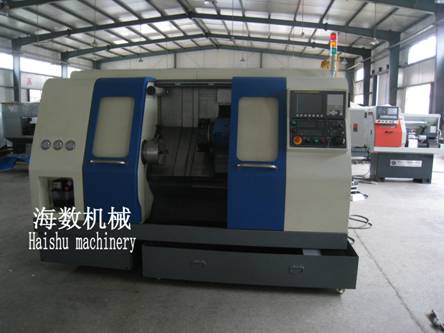

Taian Haishu Machinery Co., Ltd. continuing commitment to product innovation, in a horizontal flat bed CNC lathe on the basis of development and innovation, but also successfully developed a CNC (B-1) series of horizontal slant bed CNC lathes. Here is CNC400B-1 and CNC500B-1 slant bed CNC lathe pictures and product introduction. The product is cost-effective, processing a wide range of high efficiency, now in volume production, and exports to

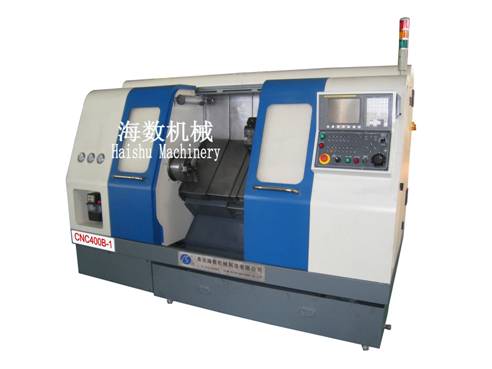

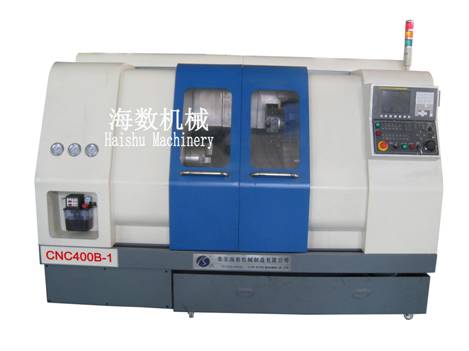

CNC400B-1 / CNC500B-1
Slant bed CNC Lathe
Introduction
CNC400B-1, and CNC500B-1 CNC lathe is an economical, practical machine tools, mature product structure, stable and reliable performance and quality, 45°tilt bed hard rail; precision ball screw, the use of multi-station electric tool,it is the domestic use of the largest, most extensive coverage of a CNC machine tool, widely used in the automobile, petroleum, military and other industries machining.
This series of machine varieties complete specifications can be achieved shaft, the inner and outer surfaces of the disc type, cone, arc, thread, boring, reaming, non-circular curve processing can also be achieved. According to the needs of users, optional CNC systems and accessories.
CNC400B-1/CNC500B-1 technical parameters:
|
Item |
Unit |
Parameter | ||
|
CNC400B-1 |
CNC500B-1 | |||
|
Max.swing diameter on bed |
mm |
400 |
500 | |
|
Max. turning length |
mm |
550 | ||
|
Max. turning diameter |
mm |
350 |
400 | |
|
Spindle types of end |
mm |
A8 | ||
|
Cutting speed |
m/min |
0-5000 | ||
|
Number of tools |
Station |
8 | ||
|
Hydraulic chuck |
mm |
φ200×φ50 |
φ250×φ50 | |
|
Front spindle bore taper |
MT6 | |||
|
Spindle bore |
mm |
, φ65mm | ||
|
Two top distance |
mm |
500 | ||
|
Hydraulic tailstock quill diameter / stroke |
mm |
φ65/120 | ||
|
Tailstock taper taper |
MT4 | |||
|
X/ZPositioning accuracy |
mm |
0.01/0.008 | ||
|
X/ZRepeat positioning accuracy |
mm |
0.005/0.008 | ||
|
Total installed capacity |
KW |
10 | ||
|
Rail width |
mm |
380 | ||
|
Hydraulic third gear spindle speed range |
r/min |
10-360;80-500；480-1800 | ||
|
Power of main motor （inverter motor） |
kW |
7.5 | ||
|
X/ZFeed motor power |
N.M |
6/10 | ||
|
Maximum workpiece swing diameter skateboard |
mm |
Φ280 |
Φ350 | |
|
Center - from the ground |
mm |
1200 | ||
|
X/Z Rapid traverse |
mm/min |
30000mm | ||
|
Carrier transfer time (one station) |
s |
0.4(Horizontal 8) | ||
|
The turret repeat positioning accuracy |
0.008" | |||
|
X:Stroke |
mm |
300 | ||
|
Z:Stroke |
mm |
850 | ||
|
Machine weight |
IT6-IT7 | |||
|
Workpiece accuracy |
μm |
Ra1.6 | ||
|
Surface roughness |
Horizontal 8Station(Servo) | |||
|
Turret form |
mm |
□25×25 | ||
|
Bed slope |
45° | |||
|
Arbor size |
mm |
2500×1350×1750 | ||
|
Machine weight |
kg |
4000 |
4500 | |
Standard configuration:
1. Control system: 980TDb
2. The solid hydraulic chuck
3. Horizontal 8-station servo turret
4. automatic lubrication system
5. Coolant System
6. fully enclosed protective system
7. The Hydraulic End Terrace sleeve electric tailstock
8 spindle Three continuously variable hydraulic
Select configuration:
1. the spindle servo speed control
2. the installation of the chip conveyor
3. the installation of feeder
4.
