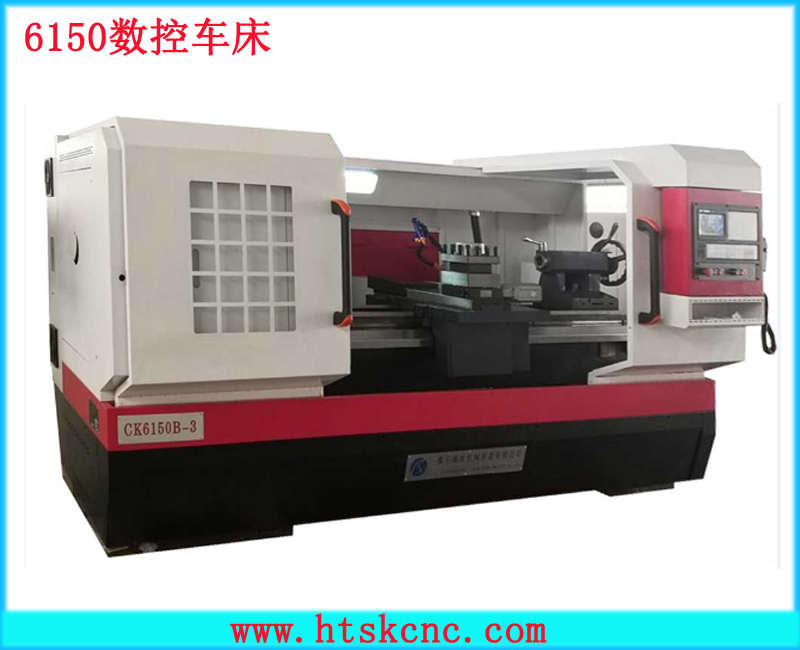

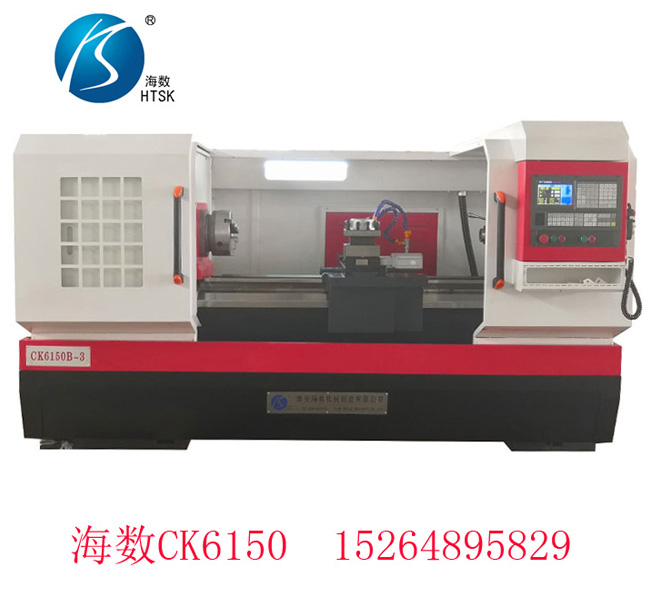

CK6150B-3 CNC LATHE
（High-precision, high-profile）
1. Technical parameters
|
items |
parameters |
|
Maximum workpiece swing diameter over bed |
Φ500mm |
|
Dragged on board the maximum workpiece swing diameter |
Φ290mm |
|
Maximum length of workpiece |
750/1000/1500mm |
|
Range of spindle speeds |
20-100；100~550；400~1600rpm |
|
Spindle bore diameter |
Φ82mm |
|
Skateboard maximum stroke (X) |
290mm |
|
Width of guide rails |
390mm |
|
The form of spindle head |
D-8 |
|
Taper of spindle bore |
1：20 |
|
Turret Number of tool |
4/6/8/ or row of knife |
|
Tool cross-section specifications |
25mm×25mm |
|
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
|
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |
|
Tailstock quill taper |
MT5 |
|
Tailstock quill maximum moving distance |
150mm |
|
Power of main motor |
7.5KW |
|
The lathe Dimensions (L × W × H) |
2600/2850/3350 mm×1300 mm×1750mm |
|
Lathe Net |
2600/2800/3200kg |
2. main features
(1) Frequency stepless speed third gear, has the advantage of independent spindle and the gear shift, high torque , wide speed range, high processing efficiency, high precision, energy saving and environmental protection.
(2) Spindle diameter increases(φ82mm)。
(3) The width of the bed: 390mm.
3. Configuration
(1) Control system optional: Guangshu's GSK,
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight, rows of knives and so on.
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for steel, cast iron, non-ferrous metals and other materials roughing, semi-finish turning and precision machining
