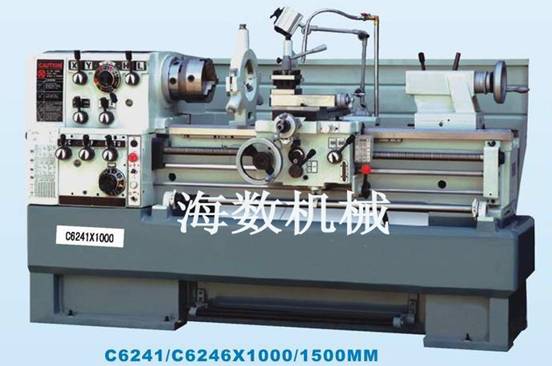

C6141/C6246 Light Duty Lathe

UpdateTime：2012-5-22 23:44:17
Views：
Brand：HaiShu
Model：輕型臥式車床

Order Hotline：+86-538-8606169

C6241 / C6246 light horizontal lathe accessories: 1, 3 jaw chuck 2, disorderly buckle plate 3, stay top 4, the cooling system Five, four jaw chuck 6, rest 7, toolkit, and tools 8, hanging round 9, variable diameter 10, the entire block boar

Details

C6241/C6246 MAJOR SPECIFICATIONS

Item	Specifications
	C6241	C6246
Swing Over Bed	410mm (16”)	460mm（18”）
Swing Over Cross Slide	224mm (8~13/16”)	274mm (10~3/4”)
Swing In Gap	640mm (25~1/8”)	690mm (27~1/8”)
Length Of Gap	155mm (6~1/8”)
Max. Length Of Workpiece	1000mm (40”)/1500mm（60”）
Bed Width	300mm (11-13/16”)
Spindle Nose	D1-6
Spindle Bore	58mm (2~1/4”)
Taper Of Spindle Bore	NO.6Morse
Range Of Spindle Speed	12changes 25~2000r/min
Max.Travel Of Compound Rest	120mm (4~3/4”)
Max.Travel Of Cross Slide	290mm (11~3/8”)
Leadscrew Pitch	Metric 6mm
Max.Section Of Tool	25mm×25mm (1×1”)
Longitudinal Feeds Range	42kinds 0.031~1.7mm/rev (0.0011”~0.0633”)/rev
Cross Feeds Range	42kinds0.014~0.784mm (0.00033”~0.01873”)
Metric Threads Range	41kinds0.1~14mm
Inch Threads Range	60kinds2~112T.P.L
Diametrical Pitches Range	50kinds4~112D.P.
Module Pitches Range	34kinds0.1~7M.P.
Dia. Of Tailstock Sleeve	60mm (2~5/16”)
Travel Of Tailstock Sleeve	120mm (4~3/4”)
Morse Taper Of Tailstock Sleeve	NO.4Morse
Power Of Main Motor	4/5.5kw
Power Of Coolant Pump	90w
