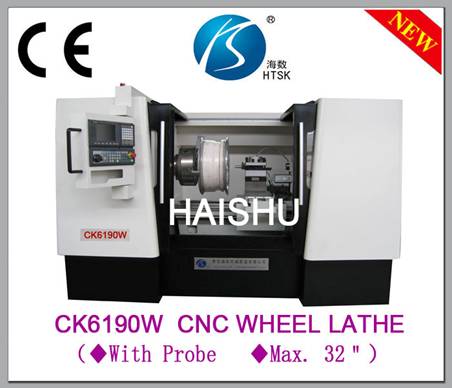

CK6190W Wheel repair lathe
1．Technical parameters
|
Project name |
Unit |
Technical paramaters |
|
Max. turning diameter over the bed |
Inch |
35”（φ900mm） |
|
Machining diameter of the wheel |
Inch |
32” |
|
Max. machining length of the workpiece |
mm |
750 |
|
Max. measured depth of the probe |
mm |
100 |
|
Max. machining depth of the tool |
mm |
100 |
|
Machning accuracy |
IT6-IT7 | |
|
Surface roughness |
um |
Ra0.8~0.1 |
|
Main transmission form |
Independent spindle; frequency conversion stepless | |
|
Range of spindle speed |
rpm |
150~2000 |
|
Main motor power |
kw |
11 |
|
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
|
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
|
Standard accessories |
4 station electric tool | |
|
Repeat positioning accuracy(mm) |
mm |
0.008 |
|
Section of turning tool(mm) |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2700×1840×2070 |
|
Net weight of the machine(kg) |
3400 | |
2. Main features
◆Wheel special machine tool. The new design, new structure,new technology.
◆Achieve the wheel surface profile measurement and data collection and Program Optimization.
◆Automatic precision repair and machining in accordance with the curve of the wheel surface.
◆Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
◆X / Z axis servo drive.
◆Manual jaw self-centering chuck.
◆Machine guard full protection.
◆Security and fault alarm indication.
◆Automatic oil lubrication.
◆Diamond turning, to achieve high-precision smooth machining on wheel surface.
3. Uses
◆The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
◆The machine tool has also the function of the general CNC lathes.
“HAISHU” wheel repair curve optimization software features 1、 The software has two-way curve optimization features of the X and Z direction, can achieve the curve optimization of the wheel face and circumference (rim) surfaces. 2、 According to the wheel CAD drawings, modified the curves be generated by collection points of the wheel surface. modify the curve of measurement acquisition point generating of wheel surface. 3、 According to the point of collection from the surface of the wheel, you can automatically generate a curve, you can also manually modify and optimize the curve. 4、 The software can display multiple languages, adapt to customers in different countries. 5、 The software is self-developed, design can be personalized according to customer requirements. 6、 The software requires no special installation, open to use, operation is very simple. 7、 The software enables to a self-set for safety distance of advance and retreat knife.
