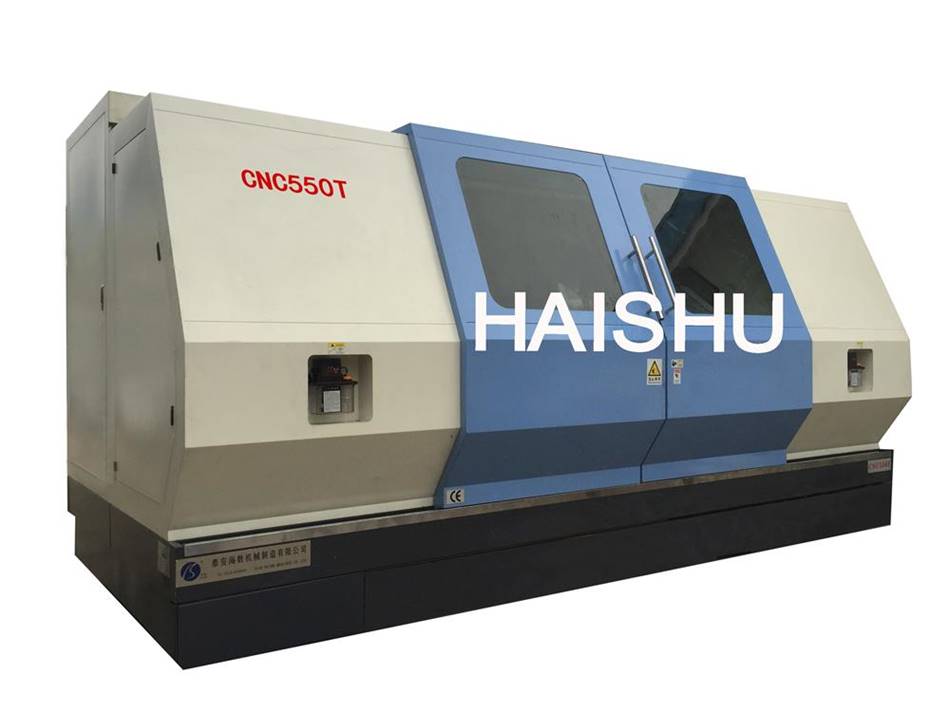

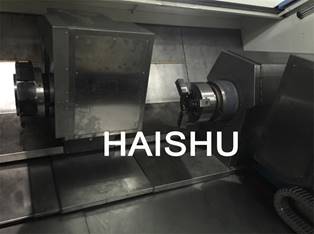

CNC550T/CNC850T CNC turning center (Two spindle, Two power turret, Two Y axis)
Item Unit Technical Parametersl CNC550T CNC850T Maximum turning diameter over bed mm 550 850 Maximum turning diameter pallet mm 500 800 Maximum machining length mm 350 Processing metric thread range mm 0.25~8 Anglo-American system processing thread range Teeth / inch 3~80 Spindle bore diameter mm 80 Rod hole diameter mm 65 Spindle speed Servo r/min 6000 Frequency conversion r/min 300~2800 X-axis travel mm 300 Z-axis travel mm 550 X-axis maximum mobile speed Servo mm/min 25,000 Z-axis maximum mobile speed Servo mm/min 25,000 Vice spindle travel mm 1000 Vice spindle power KW 11/15 Maximum stroke tailstock sleeve mm 90 Main motor power Servo KW 11/15 Frequency conversion KW 15 or 18 Lubricating oil pump power W 40 Hydraulic pump power KW 5.5 Cooling water pump power W 120 Workpiece clamping power source hydraulic Turret 12-Station power-turret Y-axis travel mm ±55 Dimensions（LXWXH） mm 5700x3566x2890 Net weight kg 22000
