CNC（A）Series two spindle single turret CNC turning center

UpdateTime：2015-12-23 16:07:22
Views：
Brand：HaiShu

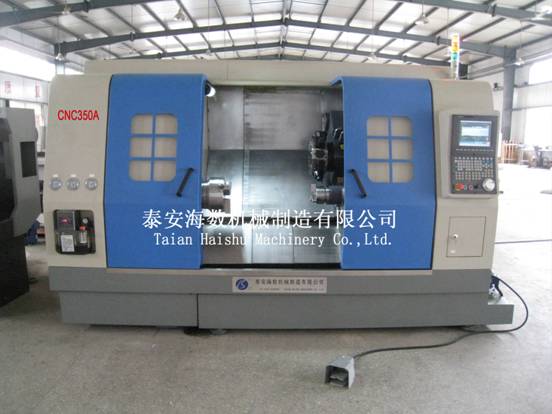

Model：CNC350A

Order Hotline：+86-538-8606169

Main feature：Double-spindle, single power turret, three-axis linkage.Can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be processed non-circular curve.

Details

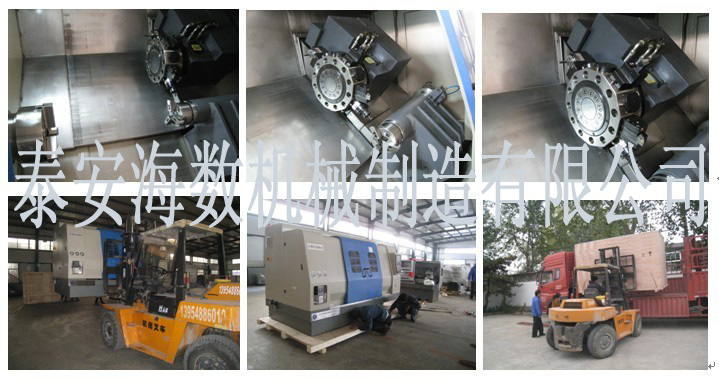

CNC（A）Series two spindle single turret CNC turning center

CNC (A) Series CNC turning centers are Taian Haishu Company latest high-end CNC machine tools, and into the U.S. market. Description of the company product quality, performance, functionality and configuration has entered the high-end segment. Welcome new and old customers to buy.

CNC（A）series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, a fixture all types of both ends of the plate parts molding process; dual-spindle synchronization relative movement of the clamping parts,ensure concentricity of disk parts; mature product structure, stable and reliable performance and quality, using 10B; 3 feed shaft +2 spindle system; overall tilt bed, three-axis ball linear guide; 12-bit double-sided servo powerturret, it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories.

No.	Item	Unit	specifications
No.	Item	Unit	CNC150A	CNC250A	CNC350A	CNC450A	CNC550A
1	Max.rotation diameter on lathe’ body	mm	150	250	350	450	550
2	Max.workpiece lengt	mm	750/1000/1500
3	Max.turning diameter	mm	100	200	300	400	500
4	Spindle nose type and code	mm	A6	A6	A8	A8	A11
5	Hydraulic chuck1	mm	Φ80 (4＂)	φ160 (6＂)	φ200 (8＂)	φ250 (10＂)	φ300 (12＂)
6	Hydraulic chuck2	mm	Φ80 (3＂)	φ100 (4＂)	Φ135 (5＂)	Φ160 (6＂)	Φ200 (8＂)
7	Front spindle bore taper		1:20
8	Spindle bore	mm	38	40	50	60	75
9	2- Servo spindle speed range	rpm	0-4000
10	X/Z/B Rapid traverse	mm/min	40000
11	Cs1，Cs2 main servo motor power	kW	3.7	5.5	7.5	11	15
12	C-axis(Turret power axis) motor power	kw	2.2	3.7	3.7	5.5	5.5
13	X/Z-axis motor max.torque	N.m	6	10	10	10	15
14	Y-axis travel(optional)	mm	+20/-20	+25/-25	+35/-35	+45/-45	+55/-55
15	B-axis(sub-spindle) motor max.torque	N.m	10	15	15	15	20
16	Power specifications	v	380±10%. 50Hz±1Hz
17	Turret transfer time (one station)	s	1.6(Horizontal 12)
18	Turret transfer repeat positioning accuracy	mm	0.005"
19	X-axis travel	mm	100	150	200	300	350
20	Z-axis travel	mm	1100/1350/1850
21	B-axis (sub-spindle) travel	mm	1400/1650/2150
22	C-axis(Turret power axis) max.speed	rpm	4000
23	Biaxial dynamic docking concentricity	mm	0.004	0.004	0.005	0.005	0.005
24	Ydraulic servo turret form		Horizontal 12-station servo power turret
25	Turret cylinder clamping force	kg	2350	2350	4240	4240	4524
26	Turret hydraulic power source	kg/cm²	30	30	40	40	45
27	Power tool holder specification		VDI30 DIN5480	VDI30 DIN5480	VDI40 DIN5480	VDI40 DIN5480	BMT60 -ER32
28	Knife handle size	mm	□16×16	□20×20	□20×20	□25×25	□25×25
29	Net weight	kg	3500	4200	5000	6200	7500
30	Size（L×W×H）	mm	2700/3000/3500×1650×1900
