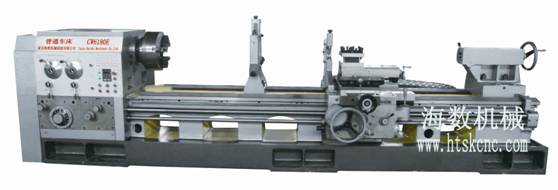

CW6163E/CW6180E
Common Lathe
Feature
● This machine can assume a variety of turned parts, turning it to various parts of the cylindrical bore, face and metric thread, Whitworth, module and pitch thread and other threads. Also suitable for use carbide tools for powerful cutting, processing a variety of ferrous and nonferrous metals;
● double bed with large sidewall reinforcement, box-and cable-stayed combination of the overall structure of the inner ribs, small deformation, stiffness strong;
● This machine uses four gears frequency conversion stepless, with full mechanical variable speed lathe, compared with large turning torque, wide speed range, low noise, high precision, stable and other characteristics;
Technical parameters
|
Item |
Lathe specifications |
Unit |
CW6163E |
CW6180E |
|
Machining range |
Maximum rotation diameter of the lathe＇s body |
mm |
φ630 |
φ800 |
|
Maximum rotation diameter of work-piece on the tool rest |
mm |
φ350 |
φ500 | |
|
Maximum length of the work-piece |
mm |
1500、3000、6000 | ||
|
The width of the lathe guide rail |
mm |
550 | ||
|
Spindle |
Spingdle nose code |
C11 | ||
|
Diameter of the spindle |
mm |
φ100 | ||
|
Spindle inside taper |
公制Metric 120 1:20 | |||
|
Range of spindle speeds |
r/min |
10-700 | ||
|
Spindle speed series |
Four gears to chang speed, No grade to change frequency | |||
|
Feeding system |
Longitudinal and transverse feeding number range |
mm/r |
56； 0.1-12 | |
|
Screw pitch |
mm |
12 | ||
|
Number range of the thread under Metric system |
mm |
44：1-120 | ||
|
Number range of the thread under British system |
mm |
26；14-1 inch | ||
|
Number range of the module thread |
mm |
45：M0.5-M60 | ||
|
Number range of the diametral pitch |
mm |
24 28-1 | ||
|
Slide fast moving speed |
mm/min |
4000 | ||
|
Knife rest |
Max travel of cross tool-post |
mm |
420 | |
|
Max travel of upper tool-post |
mm |
200 | ||
|
Length of section of knife handle |
mm |
30×30 | ||
|
Tailstock |
Sleeve diameter of tailstock |
mm |
φ100 | |
|
Sleeve trip of tailstock |
mm |
250 | ||
|
Cone hole taper tailstock＇s sleeve |
Morse |
Morse 6# | ||
|
Main motor power |
KW |
11 | ||
|
Machine Size, Weight |
Length*width*height |
mm |
3580/5080/8080×1320×1500 | |
|
Net weight |
Kg |
4050、5200、7510 | ||
