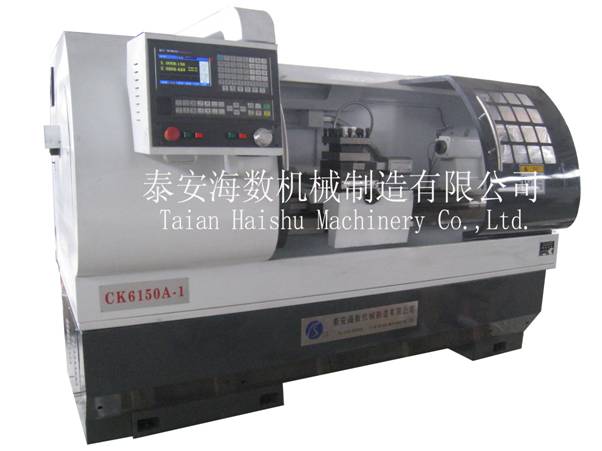

CK6150A-1×1000 CNC Lathe
Standard configuration:
◆CNC system: GSK928,
◆Manual chuck ,
◆Manual tailstock,
◆Vertical four-station electric turret,
◆Automatic lubrication system,
◆Turning the cooling system.
Select configure
◆CNC system: KND, Siemens, Fanuc, etc.,
◆Hydraulic chuck (solid and hollow), pneumatic chuck,
◆Hydraulic tailstock, pneumatic tailstock,
◆Automatic feeder,
◆Horizontal six-station turret, eight-station turret, tool row,
◆The spindle center height increase.
|
Item |
Unit |
Technical parameters |
|
Maximum tactical diameter of the lathe’s body |
mm |
φ500 |
|
Maximum tactical diameter of work-piece on the sliding plate |
mm |
φ290 |
|
Maximum workpiece length |
mm |
1000 |
|
Bed foot structure |
Separate bed foot | |
|
Lathe bed width |
mm |
360 |
|
Main transmission form |
Independent spindle | |
|
Speed mode |
Frequency stepless speed | |
|
Range of spindle speed |
r/min |
150~2000 |
|
The form of the spindle head |
8-A2 | |
|
Hole diameter of spindle |
mm |
φ70 |
|
Spindle centering axial taper |
1：4 | |
|
Spindle taper |
1：20 | |
|
Chuck dia. |
mm |
φ250 |
|
Main motor power |
KW |
7.5 |
|
Turret maximum stroke |
mm |
X：300； Z：760/1020 |
|
Fast-moving feed |
mm/min |
X：6000 Z：8000 |
|
Repeat positioning accuracy |
mm |
X：0.01 Z：0.015 |
|
Workpiece accuracy |
IT6-IT7 | |
|
Workpiece surface roughness |
Ra1.6 | |
|
Dia. of tailstock quill |
mm |
φ70 |
|
Tailstock quill stroke |
mm |
120 |
|
Taper of tailstock quill |
MT5 | |
|
Repeat positioning accuracy |
mm |
0.008 |
|
Section of turning tool |
mm |
25×25 |
|
Size（L×W×H） |
mm |
2600×1500×1600 |
|
Net weight |
Kg |
3200 |
